Solar Photovoltaic Roofing System

ProductsZEDroof

An Innovative Affordable Photovoltaic Roofing System

The ZEDroof is composed of large interlocking tiles that are fully interchangeable allowing different combinations of PV, SHW and rooflights. The Tedlar backed translucent PV panels allow light to filter through into the space below, creating a beautiful and useful conservatory in the roof.

The whole ZEDroof surface is flush fitting and made with matt black anodised aluminium making it attractive, unobtrusive and easy to maintain. Installing an integrated ZEDroof can also make you money. If your existing property needs re-roofing, the ZEDroof offers a more economical solution.



Clear panels available to increase the amount of daylight coming through

The ZED Roof can make you money, while providing free energy

New Build

Create a beautiful shaded conservatory at the top pf the a residential buidling

Retrofit

Installing a ZED roof onto an existing Victorian terraced house. Generate over 100% of annual electricity and around 60% of annual hot water.

Public Space

The roof panels are self cleaning and canbe installed on any roof with a pitch steeper than 15 degrees.



ZED Dock / Solar Tree

The first public E-bike charging & locking dock integrated with street furniture.

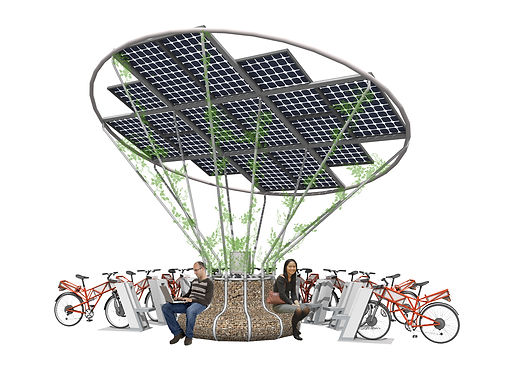

ZED Energy trees provide shade, shelter and charging for ZEDelectric vehicles. It incorporates ZEDpower Lithium batteries. The solar-tree is a robust, freestanding, PV panel mounting system with a 3kWp self supporting solar charging structure that requires no foundations to be built.

The solar tree has been designed to sit in streetscapes, parks and public spaces. It has been engineered to be robust, and both steel structure and toughened glass PV panels are very resilient to vandalism. It functions as street furniture, providing a bench, planter and shelter.

The structure comprises of graded stainless steel tubes and local rock gabion base infill minimising environmental footprint. It can incorporate advertising banners on printed fabric or an LED central illuminated lantern serving as street lighting.

Each forever ZED dock:

• Is the first of its kind to deliver a low-cost zero- carbon transportation system for public use

• Has an optional solar mast which can be rotated for maximum solar gain, allowing the dock to be orientated in any direction.

• Is designed to integrate or enhance the public realm as street furniture, and as an urban landmark with its unique design.

• Is fitted with two accessible batteries to charge other models of e-bike, or other appliances for when an e-bike is not docked.

• Has huge potential to provide valuable advertising space for businesses

• Can be gifted to city councils with zero installation costs in exchange for advertising rights.

Ecobuild, London

ZED street

Shared transport routes

Land under the energy roof creates valuable social-pubic space

Green communal spaces and public space for open activities

Green roofs

Increase public space, urban agriculture, biodiversity

ZEDroof can be incorporated into a range of Charging Structures. ZEDtrees provide shade, shelter and charging for ZEDelectric vehicles. It incorporates ZEDpower Lithium batteries. The solar-tree is a robust, freestanding, PV panel mounting system with a 3kWp self supporting solar charging structure that requires no foundations to be built. ZEDstreet canopies create a solar generating urban avenue, comfortably shaded but with dappled daylight..

A carefully designed street network for new cities – responding to different climatic and cultural zones. ZEDstreets allows to integrate all the building services together and offers a decentralised approach

Integrated services include;  ZEDroof - Solar Energy Off-grid decentralised energy source, Heating & Cooling & Water Recycling



Heating/ cooling using solar thermal panels, GSHP and slurry ice cooling. Water reusing and recycling schemes, like SUD’s, rain water collection,greywater recycling schemes, anaerobic digestion. Solid waste collection and reuse schemes like pyrolysis.



ZEDstreet integrated rain water collection and containerised slurry ice cooling system. A special two storey containerised dry composting wc unit creates dry sterile fertiliser powder from human waste. 6RT Slurry Ice Machine

Pop-up low cost community under solar farm

More Projects with ZED Roof
